  586 Morocco - Safi power plant      (Lat: 32.1514 Lon: -9.28514 - click for map)

   Safi power plant breakwater

   Rubble mound

   New Construction

Main breakwater data:


Length (m) 470   owner ONEE
Waterdepth (m) 14   contractor Daewoo Engineering & Construction
Construction time (years) 0   consultant ARTELIA
Start date (year) 0   Hydraulic Laboratory ARTELIA
Completion date (year) 2018   comments
Construction costs($106) 0

Design criteria


Hs (m) 8.3
Tz/Tp (s) 0/0

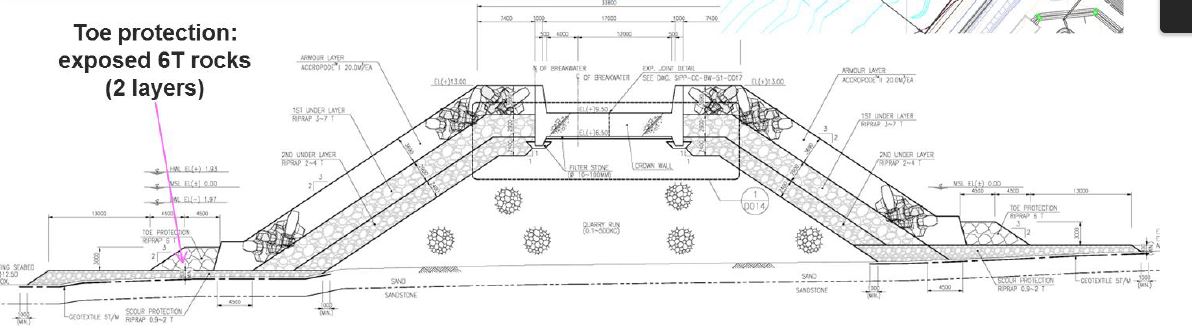

slope/crest info
front slope 1:1 20 m3 Accropode II
rear slope 1:1.5 20 m3 Accropode II
crestheight (m) 0
crest/caisson width (m) 18
wallheight (m) 0
no picture available
click on picture for enlargement
no drawing available


  Reference documents:

2016 - Coutos Marie, Hong Kyung-Wook - Toe berm design for rubble-mound breakwaters: example of the Safi power plant project; - - ;
