  585 Poland - Swinoujscie Port      (Lat: 53.9334 Lon: 14.28 - click for map)

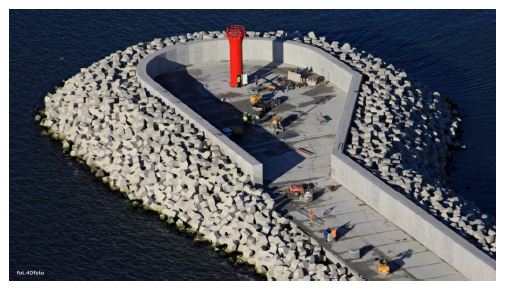

   Swinoujscie Eastern Breakwater

   Rubble mound

   New Construction

Main breakwater data:


Length (m) 3000   owner
Waterdepth (m) 0   contractor Boskalis
Construction time (years) 0   consultant DMC
Start date (year) 0   Hydraulic Laboratory
Completion date (year) 2012   comments
Construction costs($106) 0

Design criteria


Hs (m) 0
Tz/Tp (s) 0/0

slope/crest info

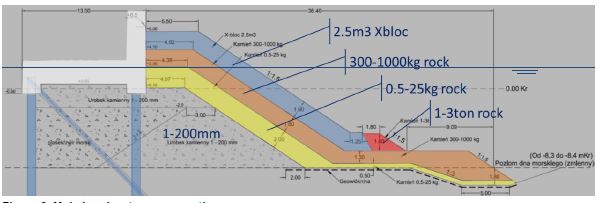

front slope 1:1 2.5 m3 Xbloc
rear slope 1:0 0
crestheight (m) 6
crest/caisson width (m) 5.5
wallheight (m) 0
no picture available
click on picture for enlargement
no drawing available


  Reference documents:

2014 - Richard de Rover, Bas Reedijk, Pieter Bakker - Xbloc innovations at Swinoujscie breakwater; - - ;
