Breakwater
details 549

International
Breakwater
Directory

  549 Sri Lanka - Colombo Port      (Lat: 6.95444 Lon: 79.8291 - click for map)

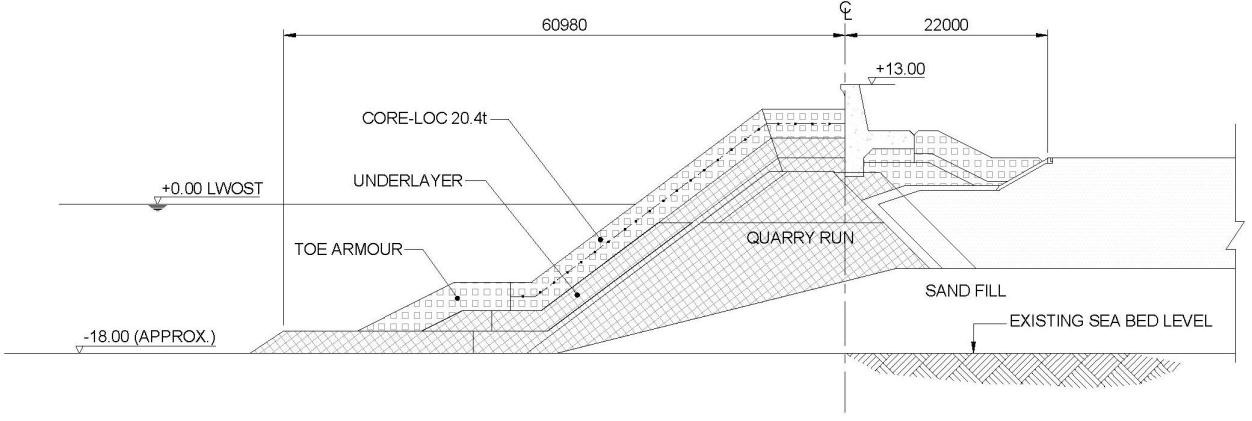

   South Breakwater

   Rubble mound

   New construction

Main breakwater data:


Length (m) 5200   owner Sri Lanka Ports
Waterdepth (m) 0   contractor
Construction time (years) 4   consultant URS Infrastructure & Environment
Start date (year) 2008   Hydraulic Laboratory
Completion date (year) 2012   comments
Construction costs($106) 0

Design criteria


Hs (m) 7.7
Tz/Tp (s) 0/14

slope/crest info
front slope 1:1.33 20.4 ton Core-Loc
rear slope 1:0 0
crestheight (m) 0
crest/caisson width (m) 25
wallheight (m) 0
no picture available
click on picture for enlargement
no drawing available


  Reference documents:

2014 - P Neville-Jones, M Young, and S Abeysiriwardana - Colombo South Harbour Breakwater Limiting Wave Conditions during Construction; From Sea to Shore – Meeting the Challenges of the Sea - - ;

This is a database prepared by HR Wallingford and TU Delft with the assistance of the international breakwater community and has been made freely available for the benefit of breakwater designers, contractors owners and developers worldwide. The database is subject to regular updating as information becomes available, however the development and maintenance of this database relies primarily on information supplied or published by third parties and no responsibility can be taken for the accuracy of data supplied.
