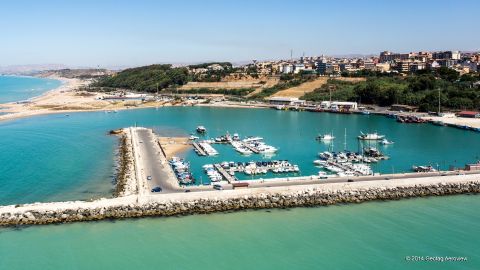

  547 Italy - Port of Gela      (Lat: 37.0644 Lon: 14.2299 - click for map)



   Rubble mound

   New construction

Main breakwater data:


Length (m) 500   owner
Waterdepth (m) 0   contractor
Construction time (years) 0   consultant
Start date (year) 0   Hydraulic Laboratory
Completion date (year) 0   comments
Construction costs($106) 0

Design criteria


Hs (m) 0
Tz/Tp (s) 0/0

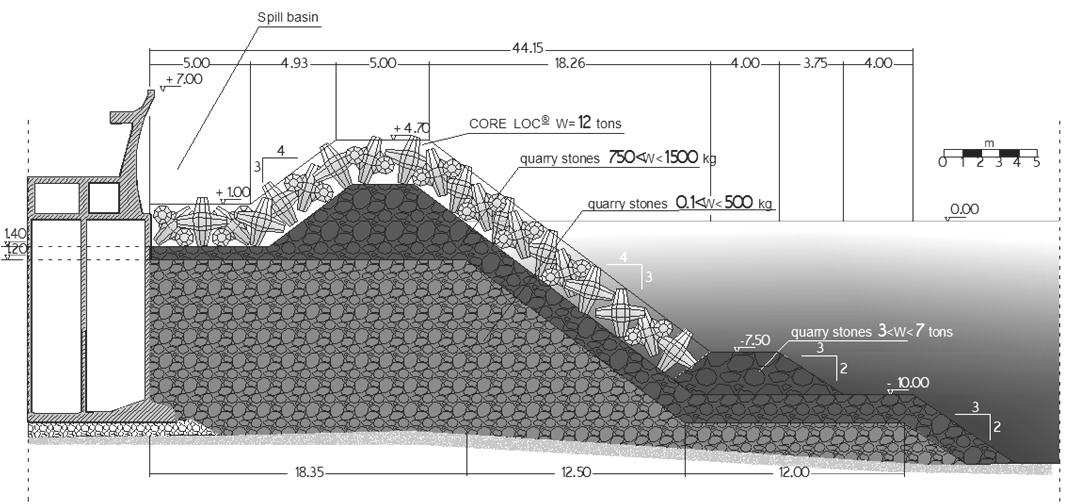

slope/crest info
front slope 1:1.33 12 ton Core-Loc
rear slope 1:0 0
crestheight (m) 4.7
crest/caisson width (m) 5
wallheight (m) 7
no picture available
click on picture for enlargement
no drawing available


  Reference documents:

2014 - Fabio Dentale, Giovanna Donnarumma, and Eugenio Pugliese Carratelli - Rubble Mound Breakwater: Run-Up, Reflection and Overtopping by Numerical 3D Simulation; From Sea to Shore – Meeting the Challenges of the Sea - - ;
