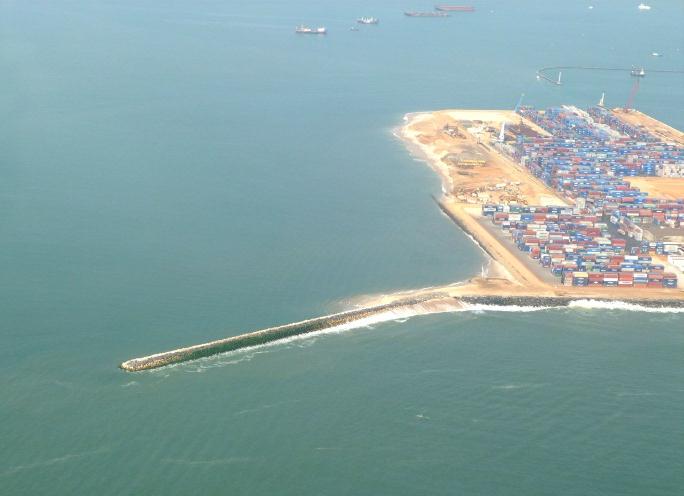

  546 Congo - Le Port Autonome de Pointe-Noire      (Lat: -4.77363 Lon: 11.8239 - click for map)



   Rubble mound

   Extension

Main breakwater data:


Length (m) 300   owner
Waterdepth (m) 12   contractor Boskalis
Construction time (years) 1   consultant DMC
Start date (year) 2011   Hydraulic Laboratory HR Wallingford
Completion date (year) 2012   comments
Construction costs($106) 0

Design criteria


Hs (m) 5.25
Tz/Tp (s) 0/13

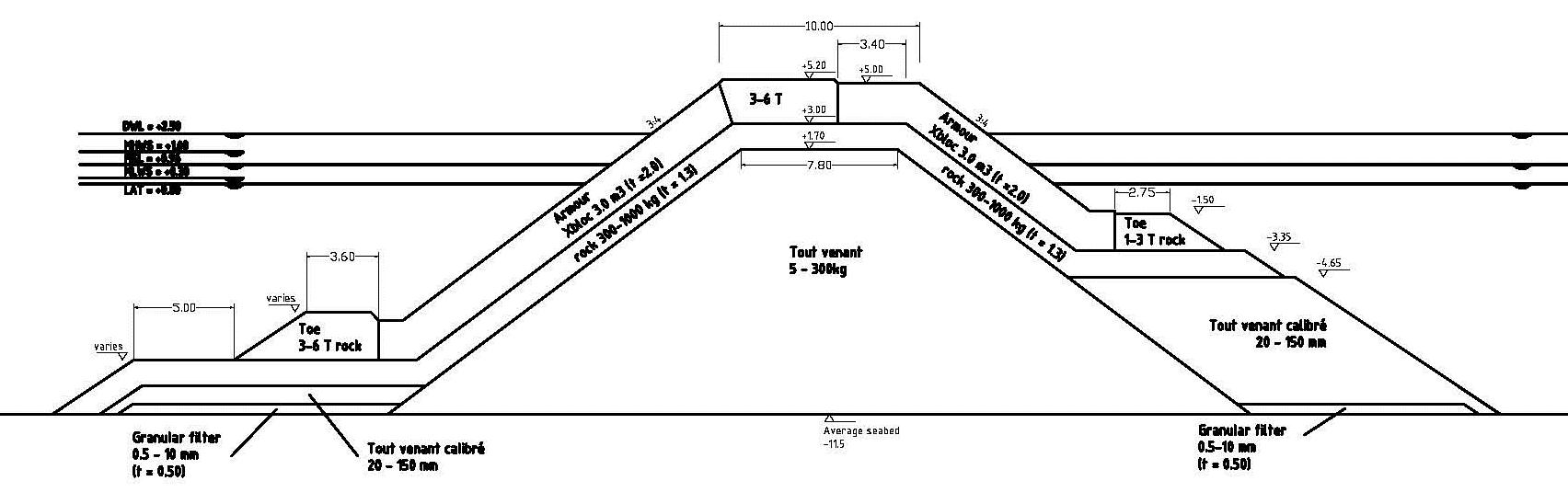

slope/crest info
front slope 1:1.33 3 m3 Xbloc
rear slope 1:1.33 3 m3 Xbloc
crestheight (m) 5.2
crest/caisson width (m) 10
wallheight (m) 15
no picture available
click on picture for enlargement
no drawing available


  Reference documents:

2014 - Bart van Zwicht, Pieter Bakker, Jeroen van den Bos, and Bert Pol - The Extension of the Pointe Noire Breakwater – Congo; From Sea to Shore – Meeting the Challenges of the Sea - - ;
