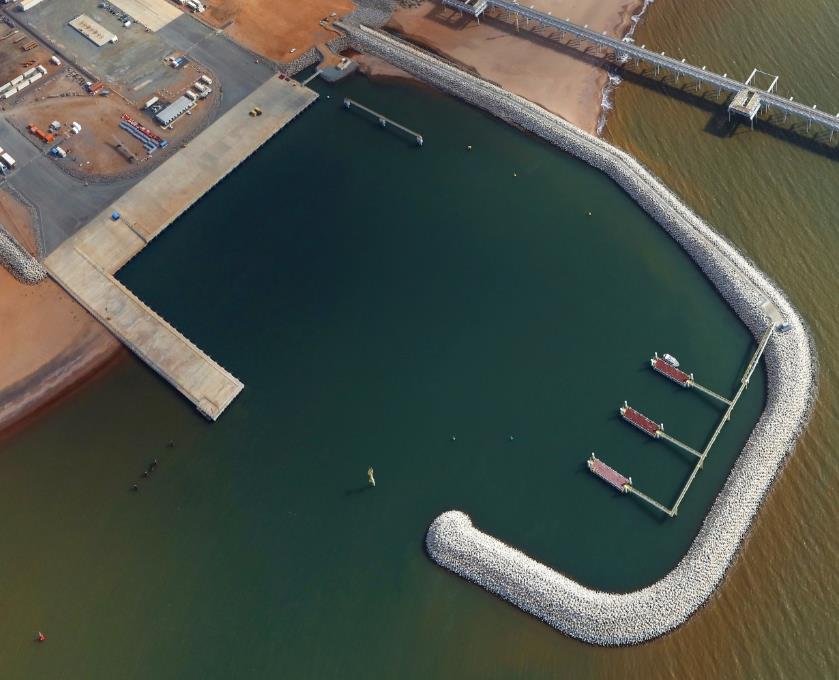

  539 Australia - Onslow      (Lat: -21.6815 Lon: 115.009 - click for map)

   Protection for LNG Material Offloading F

   Rubble mound

   New construction

Main breakwater data:


Length (m) 1020   owner Chevron Australia
Waterdepth (m) 8   contractor BESIX THIESS JV
Construction time (years) 0   consultant Lanier Wallingford International
Start date (year) 0   Hydraulic Laboratory
Completion date (year) 0   comments
Construction costs($106) 0

Design criteria


Hs (m) 4.5
Tz/Tp (s) 0/11.6

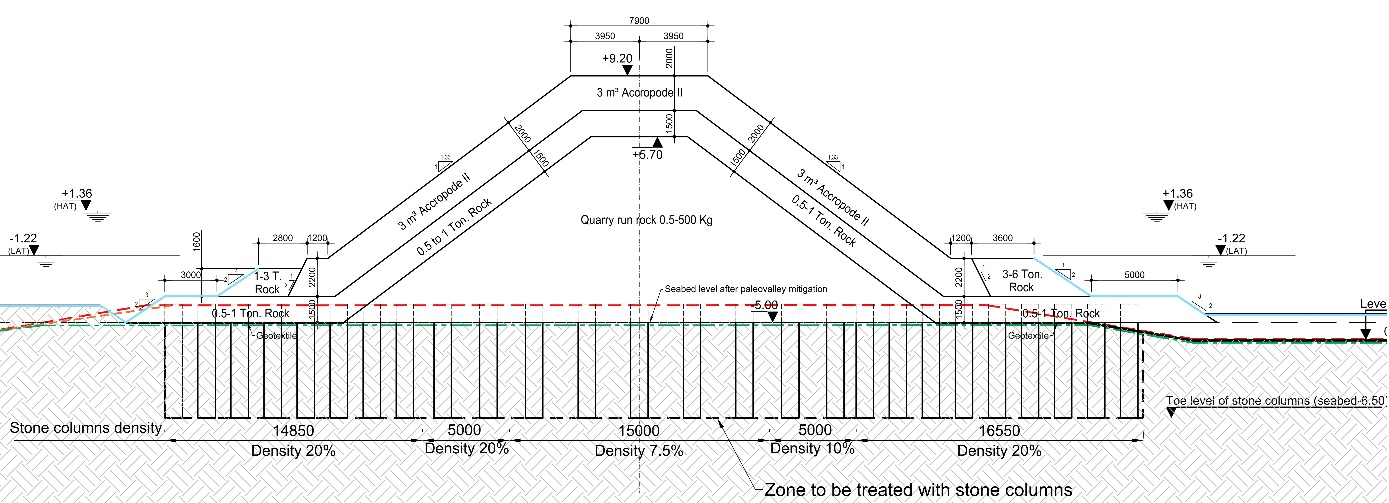

slope/crest info
front slope 1:1.5 3 m3 Accropode II
rear slope 1:1.5 3 m3 Accropode II
crestheight (m) 9.2
crest/caisson width (m) 7.9
wallheight (m) 0
no picture available
click on picture for enlargement
no drawing available


  Reference documents:

2018 - Vander MeulenHubert and BarnettToby - Case Study: Design and construction of a breakwater in a remote location in Western Australia; Coasts, Marine Structures and Breakwaters 2017 - - ;
