  139 Oman - Sohar industrial port      (Lat: 24.5009 Lon: 56.629 - click for map)





   port extension

Main breakwater data:


Length (m) 0   owner
Waterdepth (m) 9   contractor
Construction time (years) 0   consultant
Start date (year) 2006   Hydraulic Laboratory
Completion date (year) 2009   comments
Construction costs($106) 0

Design criteria


Hs (m) 4.5
Tz/Tp (s) 0/8.6

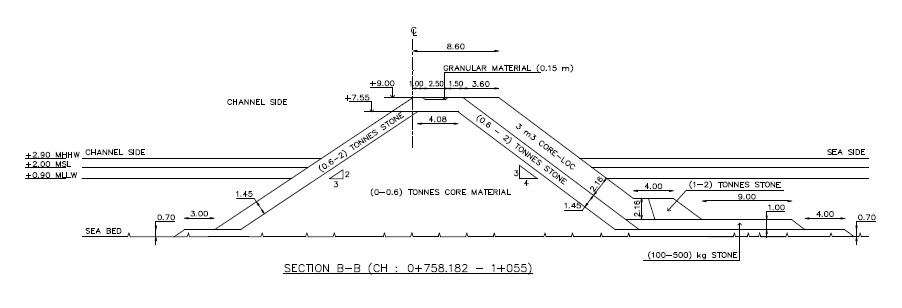

slope/crest info
front slope 1:1.5 3 m3 Core-Loc
rear slope 1:0 0
crestheight (m) 0
crest/caisson width (m) 0
wallheight (m) 0
no picture available
click on picture for enlargement
no drawing available


  Reference documents:

0 - CLI - Project list nr; 2010 -AliRiza Gunbak - Modelling of Sohar Intake Breakwater; Coasts, marine structures and breakwaters: Adapting to change.
