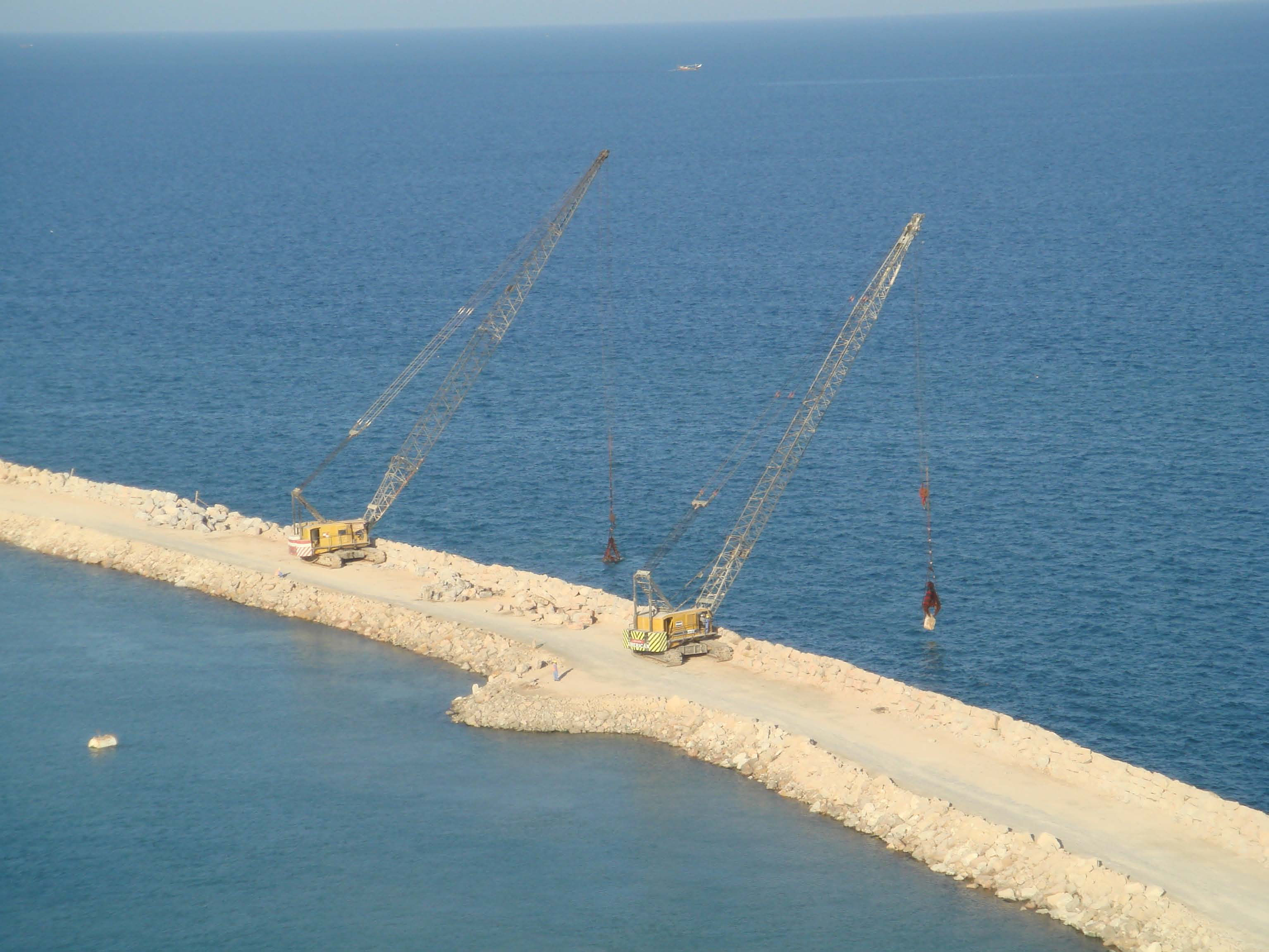

  135 Oman - Duqm      (Lat: 19.6687 Lon: 57.7047 - click for map)

   2 new breakwaters

   Rubble mound

   Port construction

Main breakwater data:


Length (m) 0   owner
Waterdepth (m) 14   contractor Daewoo-Galfar JV
Construction time (years) 0   consultant Haskoning
Start date (year) 2002   Hydraulic Laboratory Deltares
Completion date (year) 2006   comments proposed
Construction costs($106) 0

Design criteria


Hs (m) 5.8
Tz/Tp (s) 0/0

slope/crest info
front slope 1:1.5 10 ton Core-Loc
rear slope 1:1.5 0
crestheight (m) 11
crest/caisson width (m) 25
wallheight (m) 0
no picture available
click on picture for enlargement
no drawing available


  Reference documents:

2008 - Van der Lem, C. - Breakwaters Capability Statement, Version 2.1; Royal Haskoning - - ;
