Breakwater details

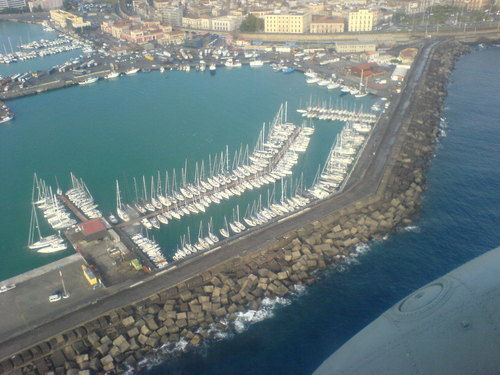

285 Italy - Catania      (Lat: 37.492 Lon: 15.1 - click for map)

Rubble mound

Main breakwater data:
Length (m) 0   owner
Waterdepth (m) 19   contractor
Construction time (years) 0   consultant
Start date (year) 0   Hydraulic Laboratory
Completion date (year) 0   comments 1. Subject to multiple improvements, 2. Values refer to the final design
Construction costs($106) 0
Design criteria
Hs (m) 0
Tz/Tp (s) 0/0
slope/crest info
front slope 1:1.5 60 ton Cubes
rear slope 1:0 0 ton Rock
crestheight (m) 8.5
crest/caisson width (m) 0
wallheight (m) 0
no picture available
click on picture for enlargement
no drawing available

Reference documents:
Takahashi, S. [2002] Design of vertical breakwaters, lecture note for the 28th ICCE, PARI, Japan
