134 Oman - Dalkut fisheries harbour      (Lat: 16.7029 Lon: 53.2538 - click for map)
Main breakwater

Rubble mound

Main breakwater data:
Length (m) 0   owner Ministry of Agriculture & Fisheries of O
Waterdepth (m) 1   contractor Galfar
Construction time (years) 4   consultant Scott Wilson
Start date (year) 1997   Hydraulic Laboratory HR Wallingford
Completion date (year) 2001   comments 2D modeling elaborated by Baird & Associates
Construction costs($106) 0
Design criteria
Hs (m) 6.9
Tz/Tp (s) 0/14
slope/crest info
front slope 1:1.5 9 m3 Core-Loc
rear slope 1:1.5 9 m3 Core-Loc
crestheight (m) 11.5
crest/caisson width (m) 7.2
wallheight (m) 0

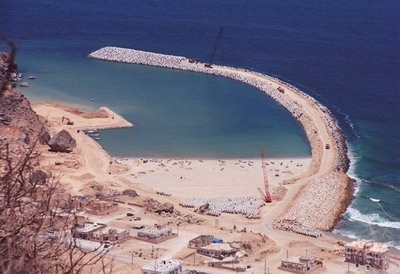

no picture available
click on picture for enlargement

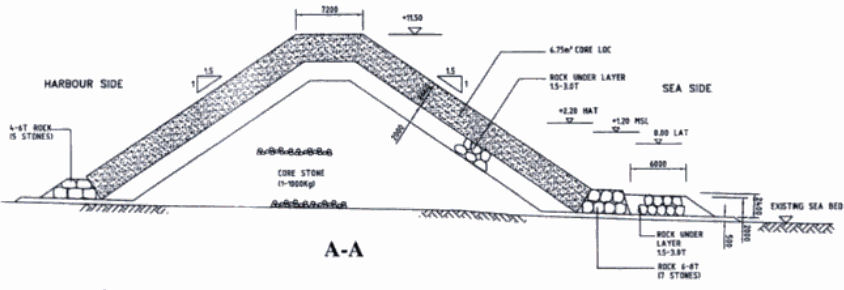

no drawing available



Reference documents:
CLI website Breakwaters, coastal structures and coastlines, Allsop N.W.H.


This is a database prepared by HR Wallingford and TU Delft with the assistance of the international breakwater community and has been made freely available for the benefit of breakwater designers, contractors owners and developers worldwide. The database is subject to regular updating as information becomes available, however the development and maintenance of this database relies primarily on information supplied or published by third parties and no responsibility can be taken for the accuracy of data supplied.
